Trailer socket „Expert“ – as watertight as can be

With the 13-pin connector system “Expert” for 12V trailer operation, ERICH JAEGER has once again set a standard within this segment: The system is 100% watertight both at the plug and at the vehicle and tested according to the protection classes IPX7 and IPX9K. Therefore, the socket avoids an ingress of water into the vehicle’s electrical system even under extreme conditions like the lowering of a sport boat into the water.

Features of the watertight trailer socket

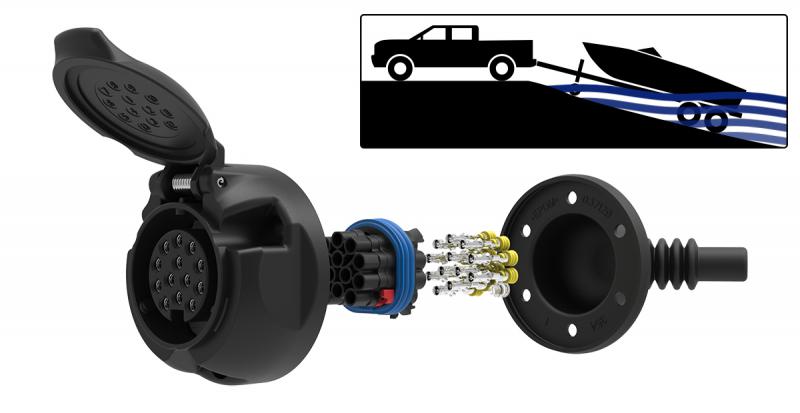

ERICH JAEGER’s engineers achieved this by developing a double contact system. Facing the vehicle, the tightness is ensured by contact sleeves with single wire seals and a stuff plug – supported by a contact insert with circumferential seal. Facing the plug, the contact installation seals the socket housing. As an option, the socket is available with a sealed non-contact switch facing the connector.

Trailer identification via the vehicle electrical system or the socket
Mostly, a control device measures the load at the socket thus being able to detect whether a trailer is plugged in or not. However, if an adapter is plugged in without a trailer, the electronic identification does not work due to the missing trailer load. Therefore, the vehicle system does not prevent the swinging out of an electric tow bar – which may damage adapter and socket. Besides, some vehicles do not include such on-board electronics or the user demands an additional possibility for trailer identification.

For the identification working reliably for all applications, Erich Jaeger offers the option to equip the socket with a switch. As soon as an adapter or plug is plugged into a socket, the switch transmits a respective signal to the vehicle. Of course, such a switch may not influence the watertightness.

Reed switch ensures watertightness
ERICH JAEGER found a solution for these applications: The company offers the 13-pin 12V socket with a non-contact switch (reed switch) as an option. The switch is activated via a magnet enclosed in a flexible rubber seal within the socket housing. In case a user inserts an adapter or a plug, the magnet within the rubber seal is pushed towards the switch and activates it. Due to the contactless switch activation, there is not outlet necessary within the socket and the watertightness is guaranteed.

The company
For more than 90 years, ERICH JAEGER has been developing and manufacturing high-quality connector systems for different branches of industry, particularly the light and commercial vehicle sector. Considering the digitalization, the global market leader for connections between towing vehicle and trailer increasingly develops smart components which play an important functional role to interconnect all automotive systems.
